Water Heat Pump
1.10 year's experiences
2.ISO, CCC and CE approval
3.High COP, EER, 75%Energy-Saving
4.High quality
Water Heat Pump
1. 10 year's experiences
2. ISO, CCC and CE approval
3. High COP, EER, 75%Energy-Saving
4. Automatical high/low pressure protection
5. Service life can reach up to 15 years, Low maintenance cost
5. Low noise, Safety, Easy installation, Intelligentized manipulation

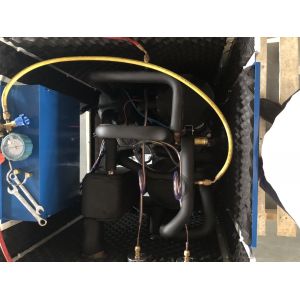

Structure:
1. Condenser of water heat pump:
2. Evaporator of water heat pump:
3. Electronic expansion valve: 4. Compressor:
5. Control Panel:
-
Our Company
Water Heat Pump parameter table:
| Item(unit) |
GSH76 |
| Rated input power(Kw) |
17.6 |
| Rated heating capacity(Delivered)(Kw) |
76 |
| Rated cooling capacity(Kw) |
56 |
| Rated voltage(V) |
380 |
| Rated frequency(Hz) |
50/60 |
| Rated current(A) |
35 |
| Rated outlet water temperature( °C) |
55 |
| Maximum outlet water temperature( °C) |
60 |
| Cold water temperature drop( °C) |
3~5 |
| Water flow(L/H) |
22000 |
| Pipe size of load side diameter(mm) |
Dn50 |
| Pipe size of heat source side diameter(mm) |
Dn50 |
| Dimensions(mm) |
1550*1150*970 |
| Packing Dimensions(mm) |
1590*1190*1000 |
| Weight(Kg) |
620 |
| Level of security |
IP×4 |
| Electric shock protection grade |
1 grade |
| Noise(Db) |
≤55 |
| Refrigerant |
R417A/R407C/R404A/R22/R134A |
| Compressor |
Copeland |
| Condenser |
Double pipeheat exchanger or
Shell and tube heat exchanger |
| Evaporator |
Shell and tube heat exchanger |
| Throttle units |
Electronic expansion valve/
thermal expansionvalve/capillary |
| Control System |
Multi-Control |
Remarks: the test of conditions of above parameter: the water of heat source side 15°C, the water temperature of load side 15°C, output water temperature 55°C.
